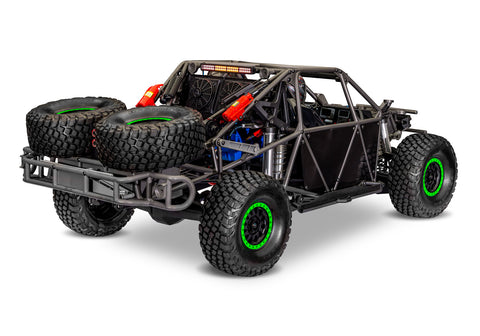

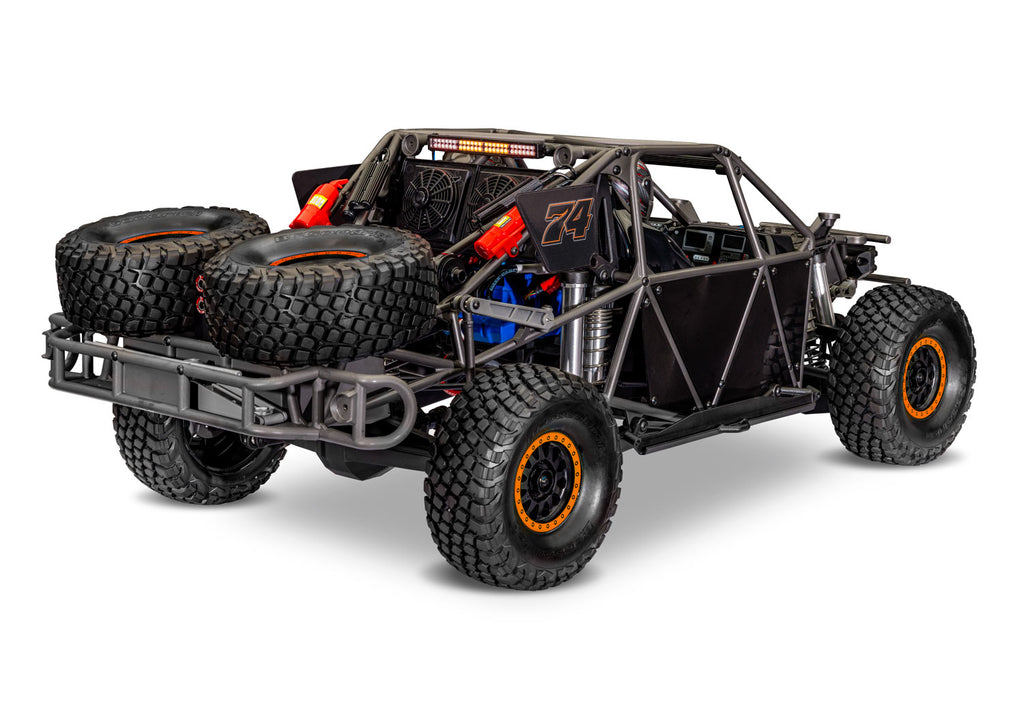

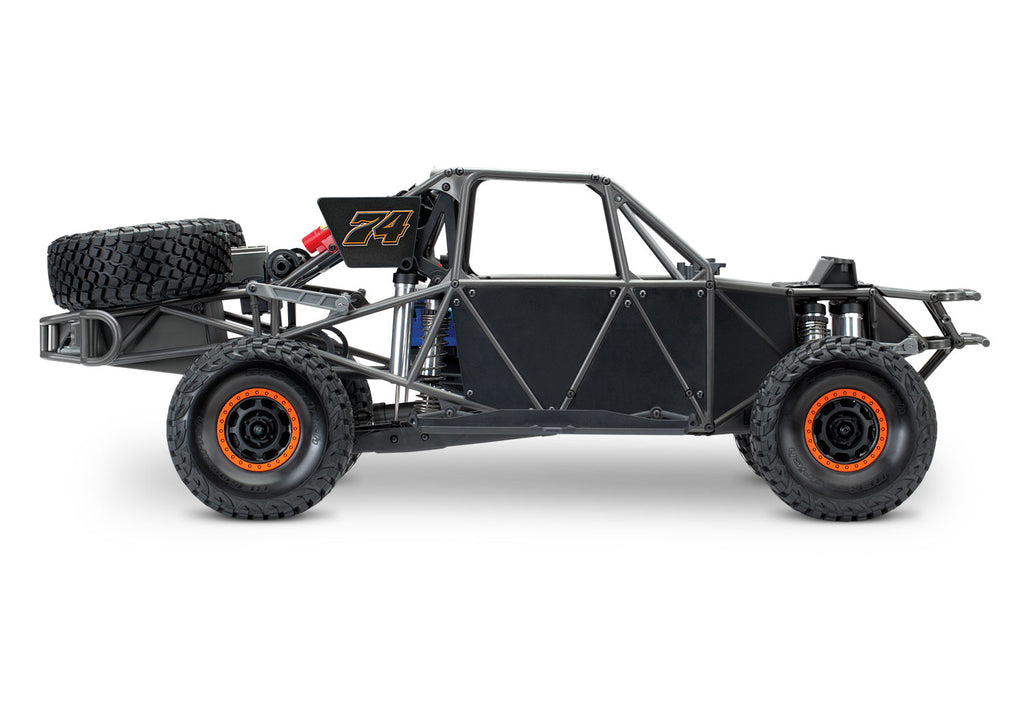

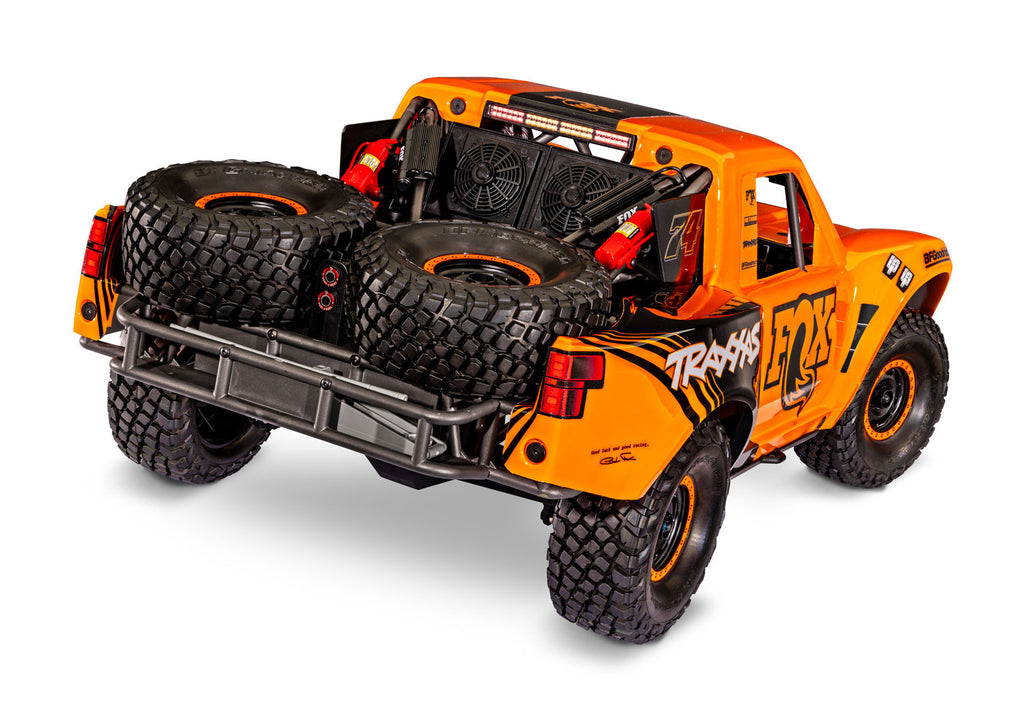

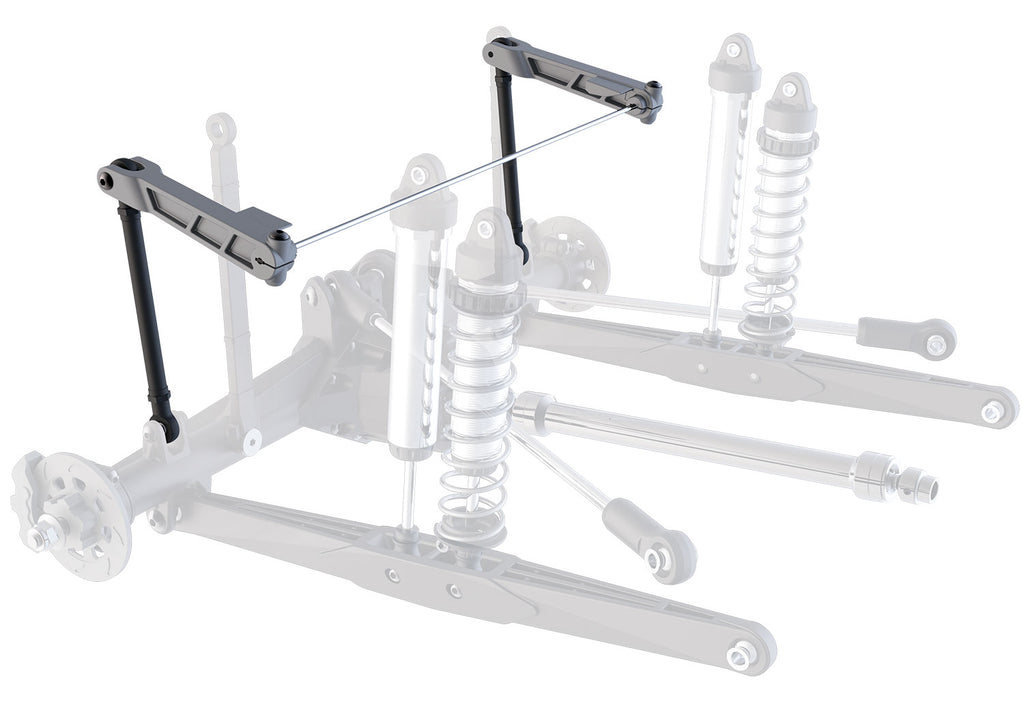

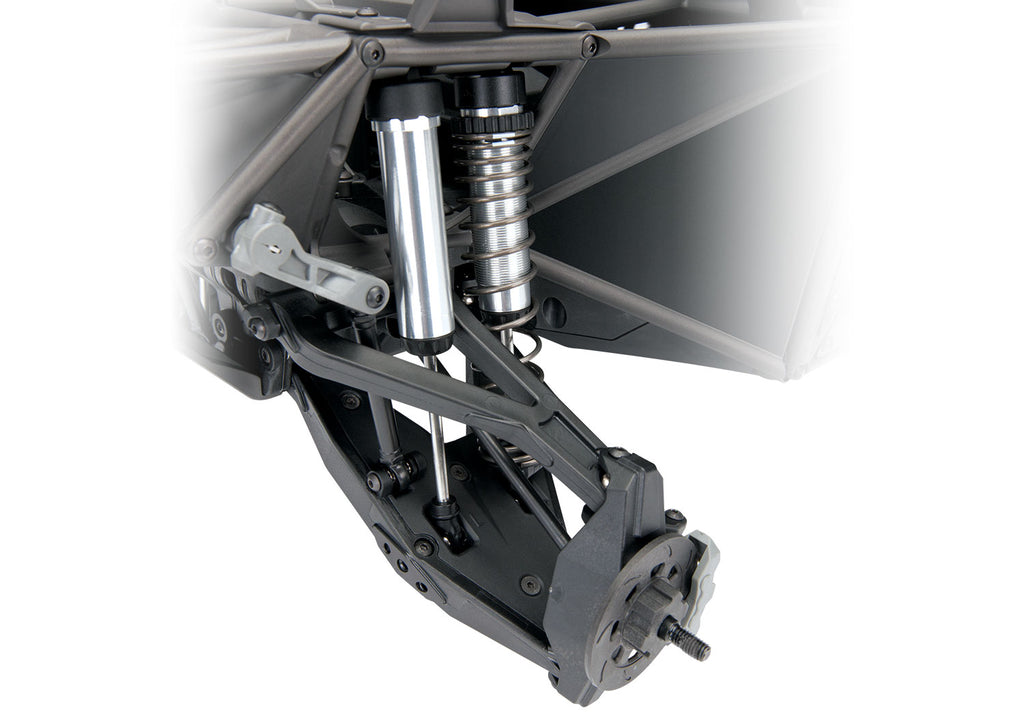

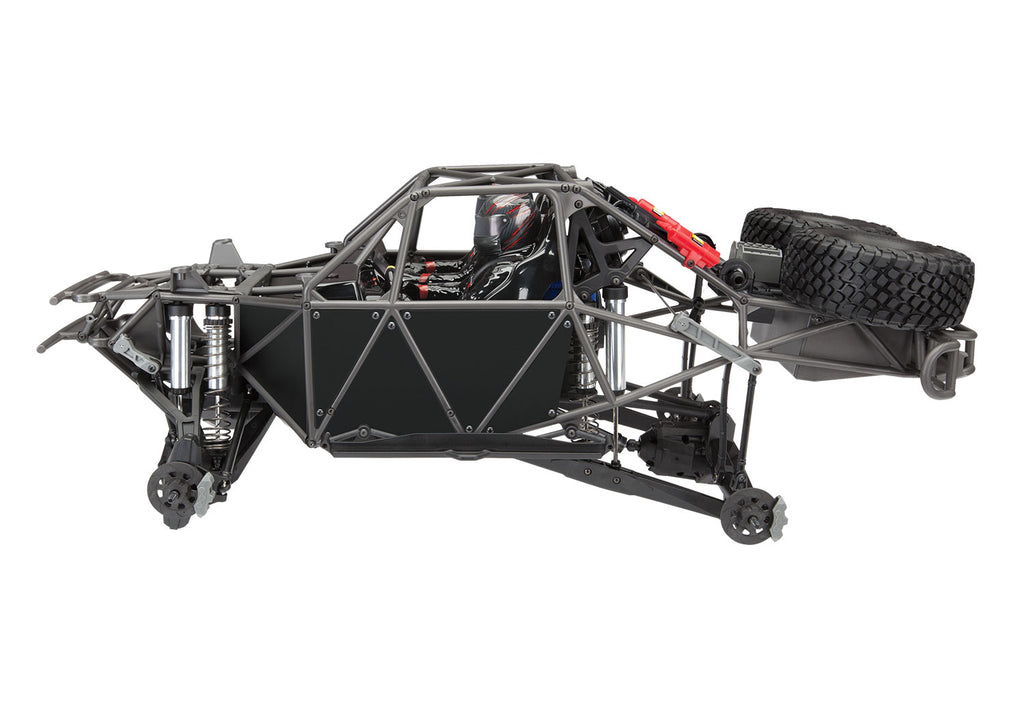

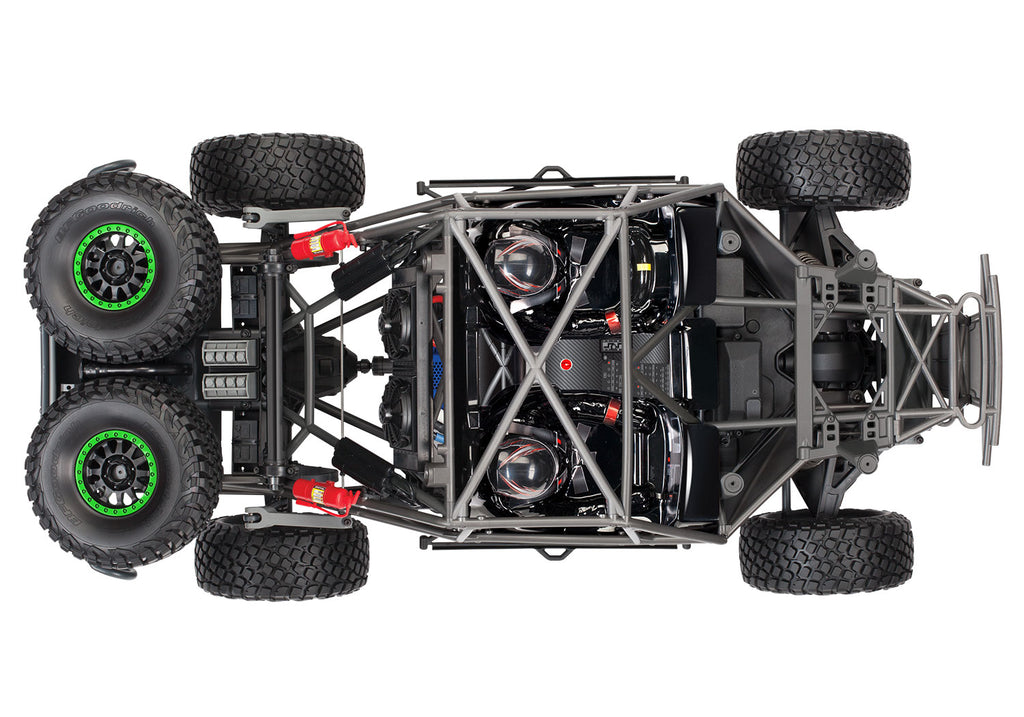

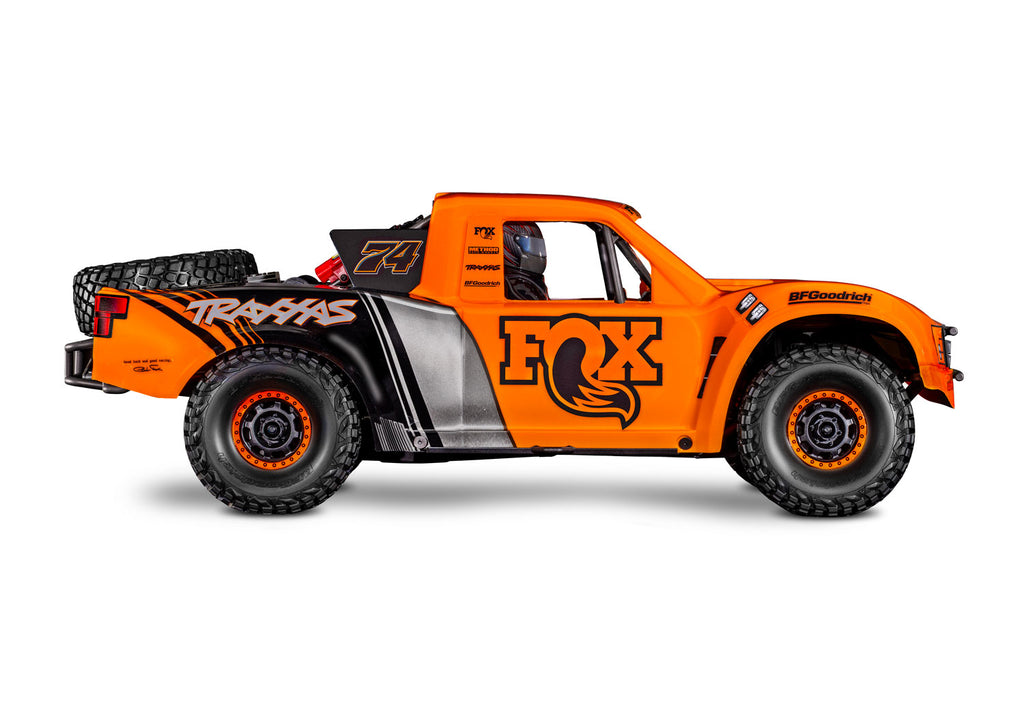

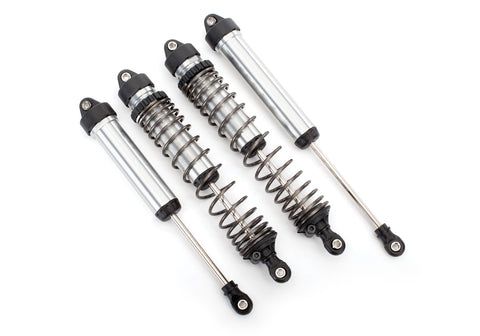

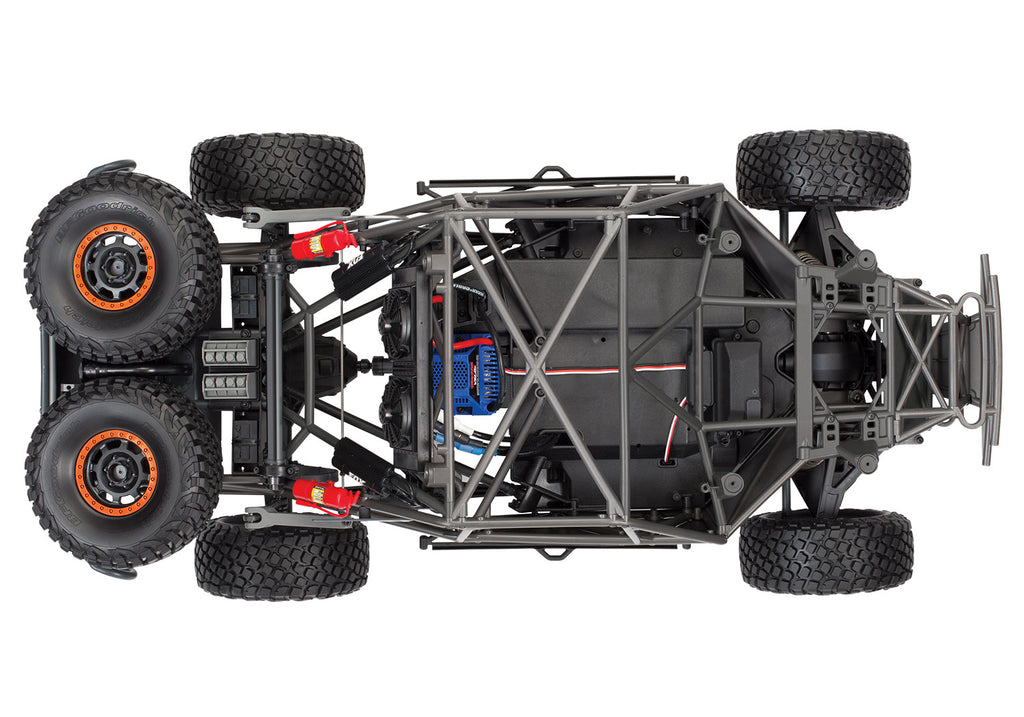

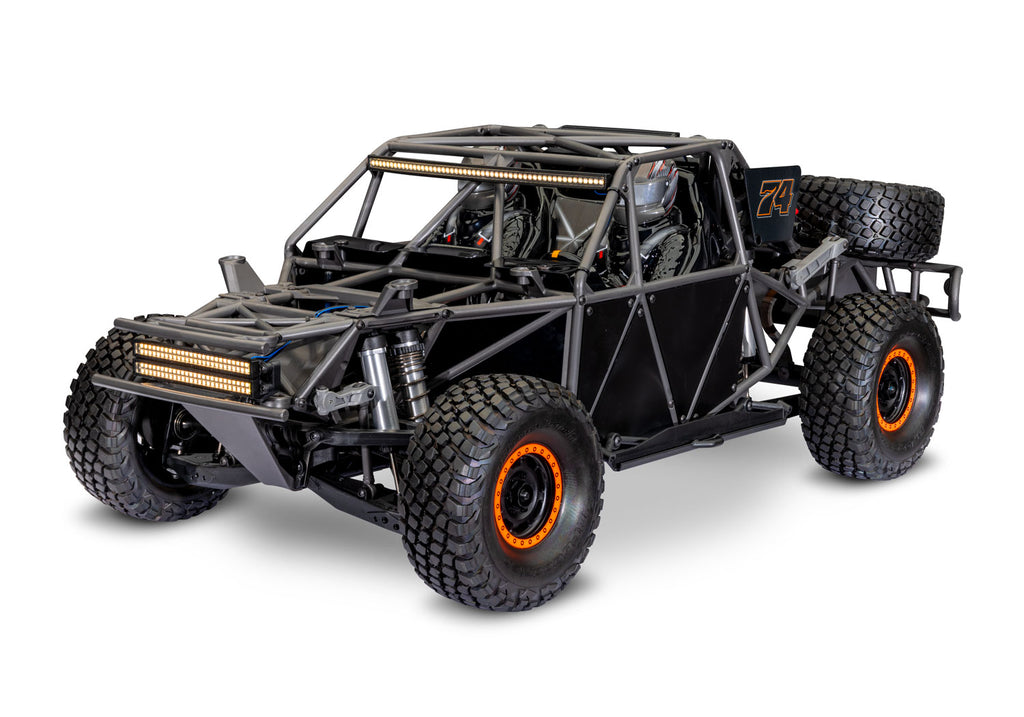

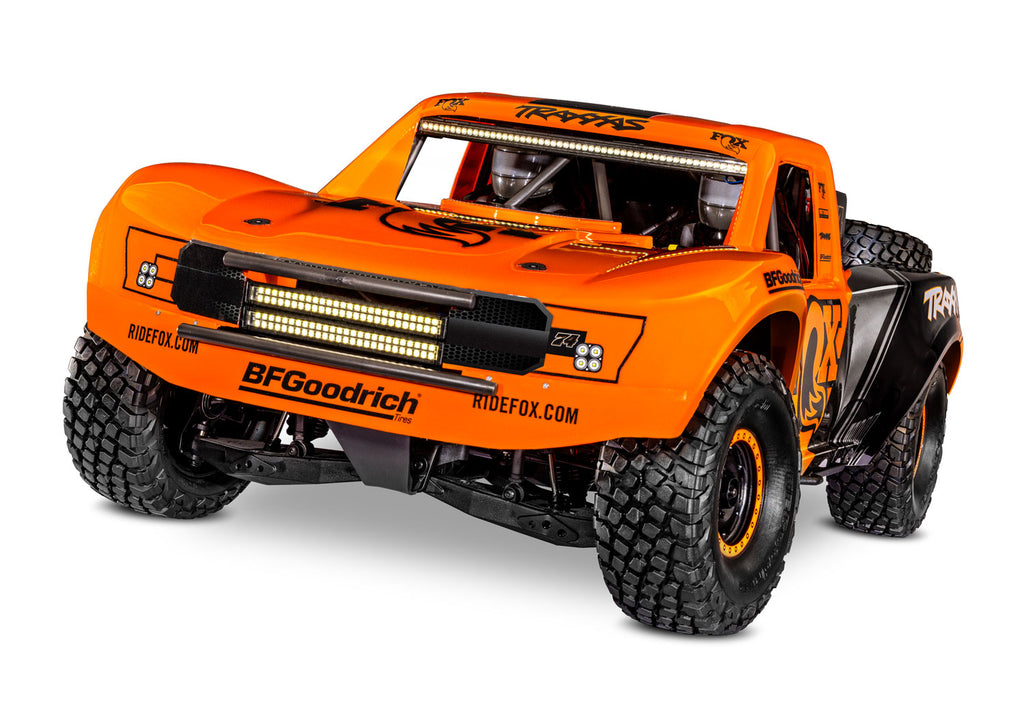

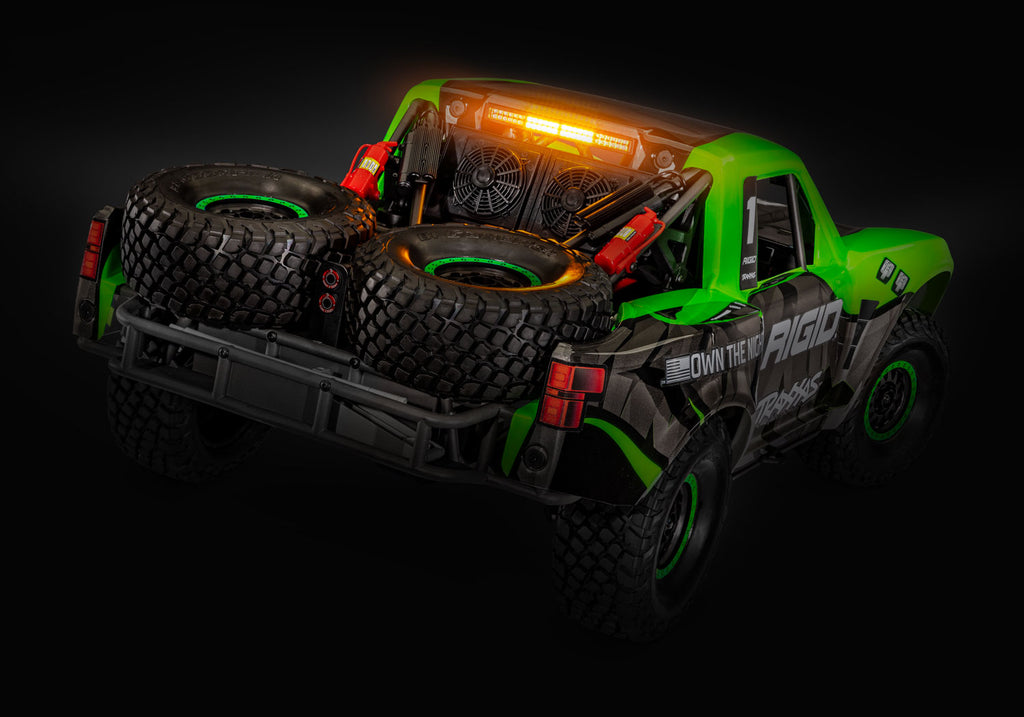

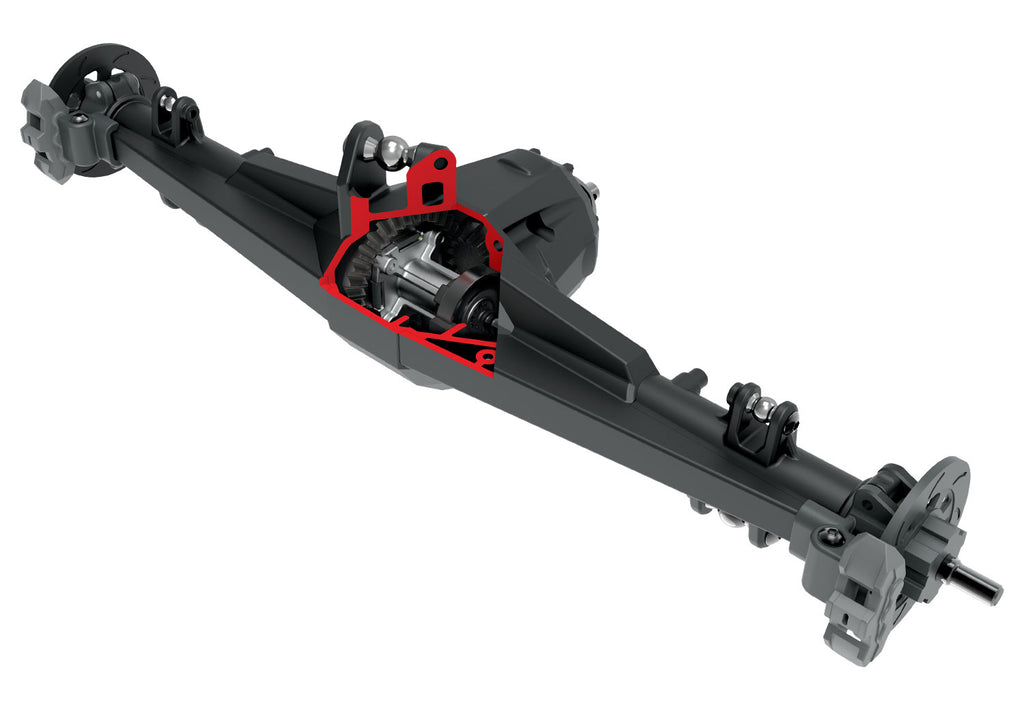

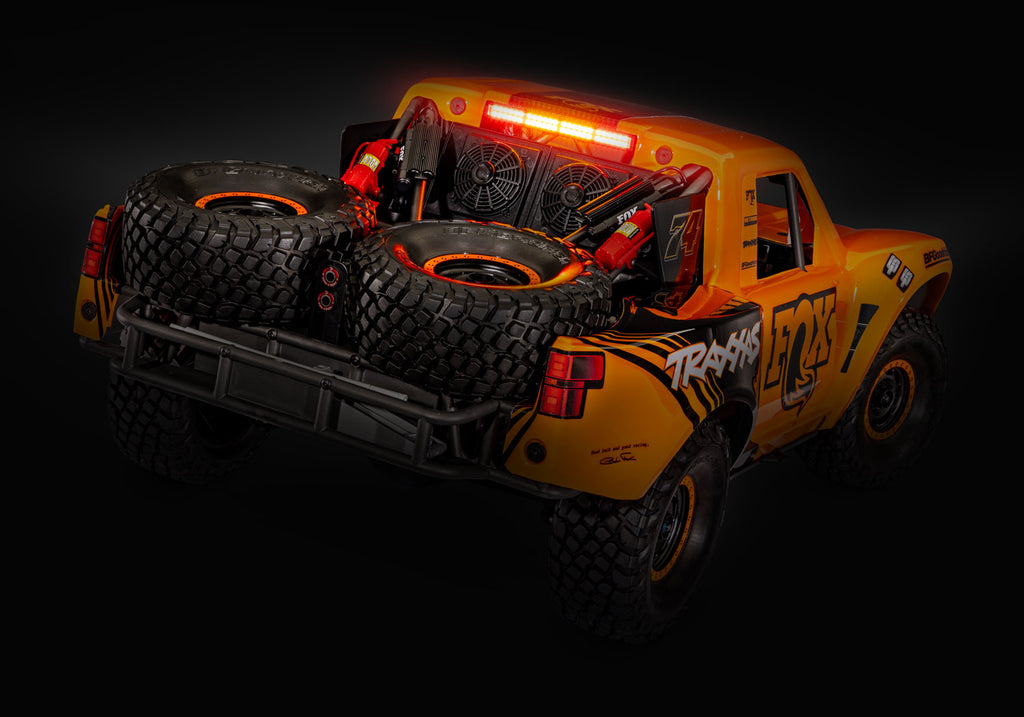

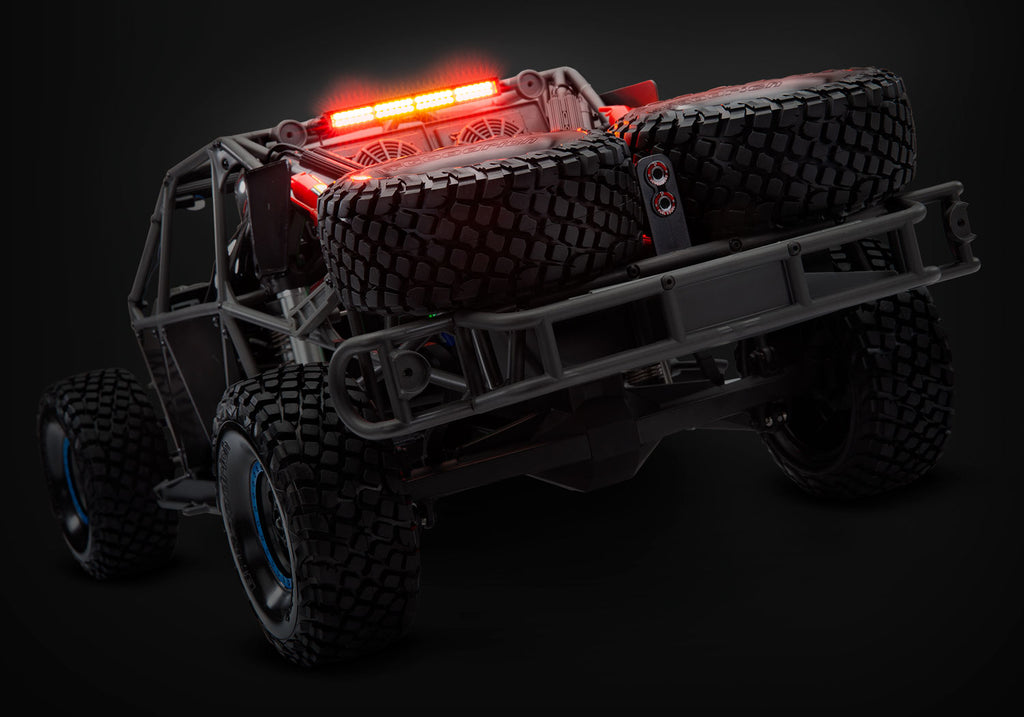

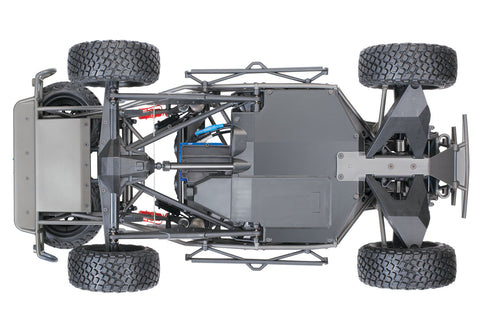

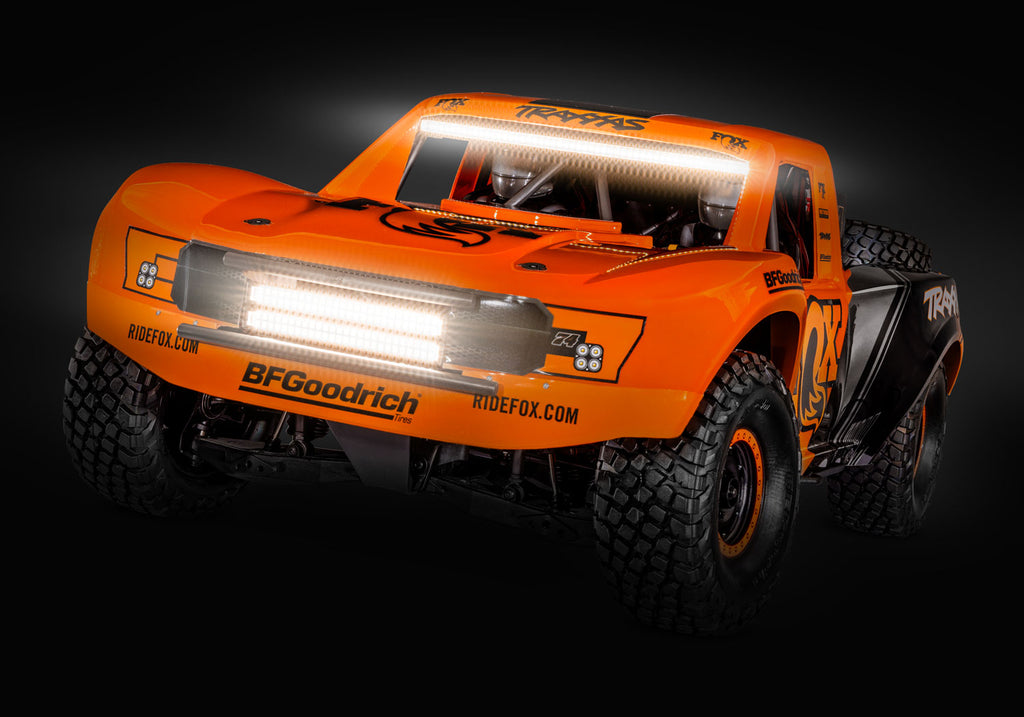

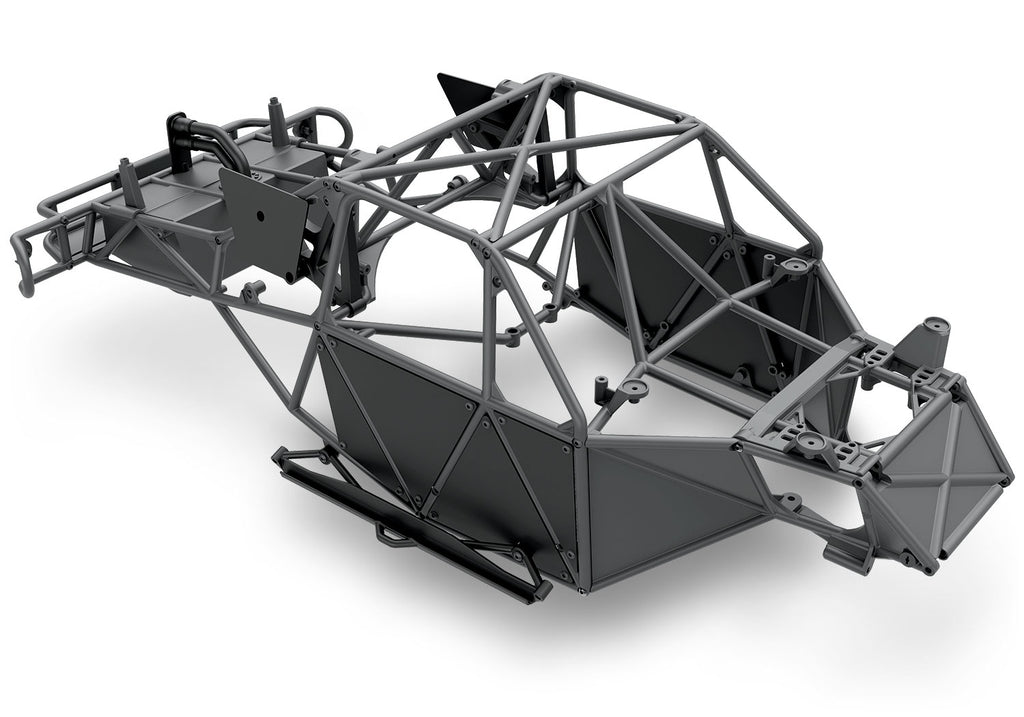

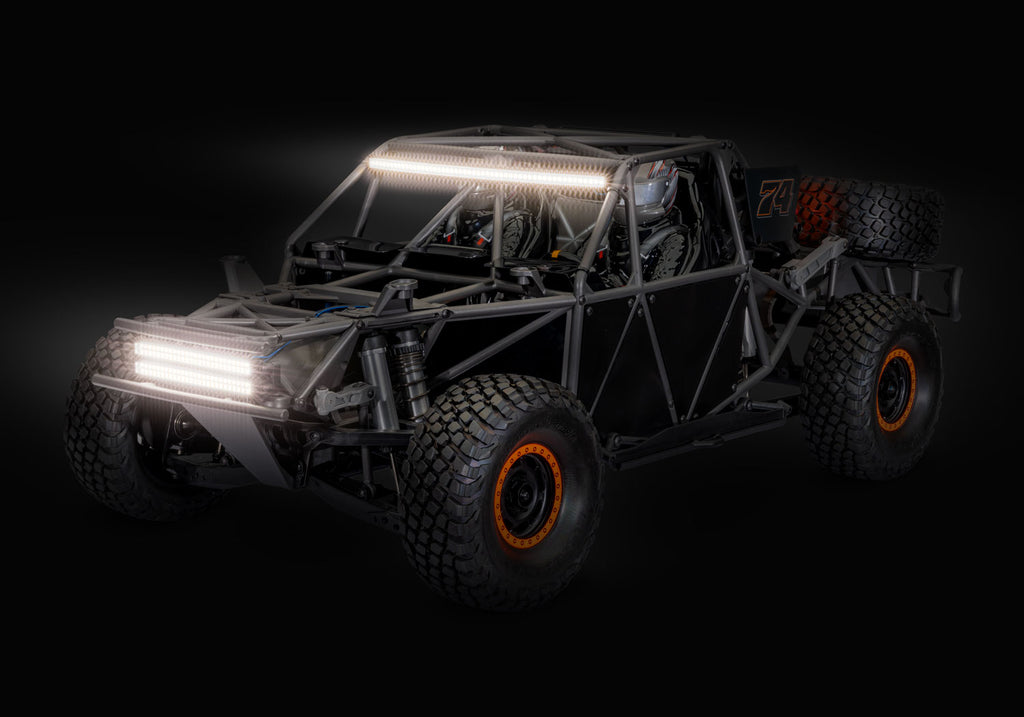

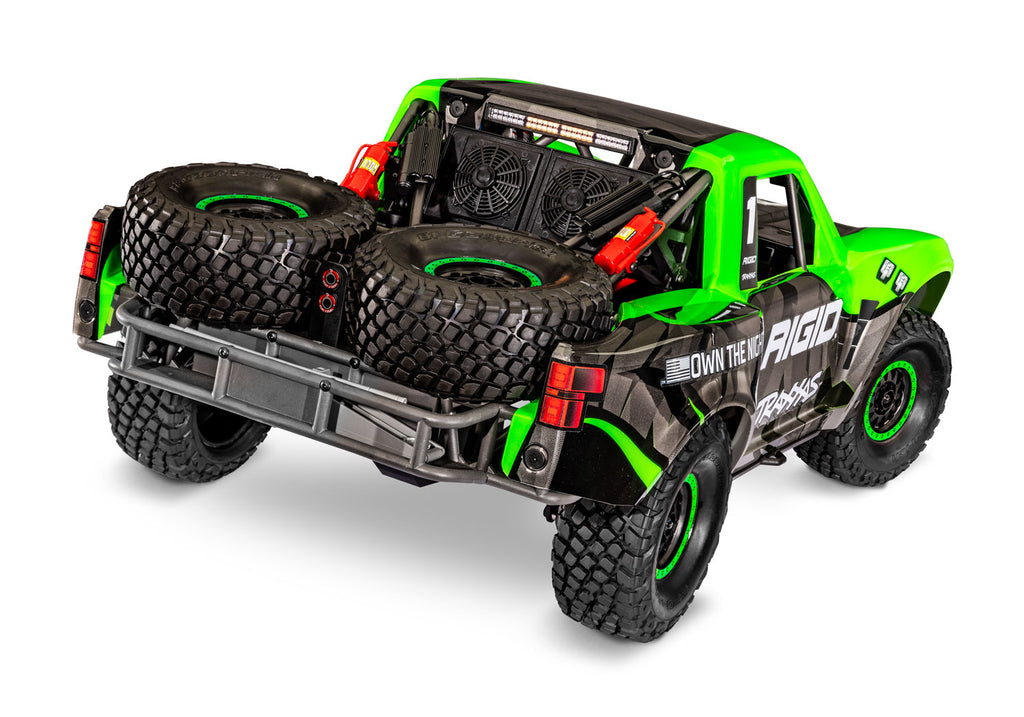

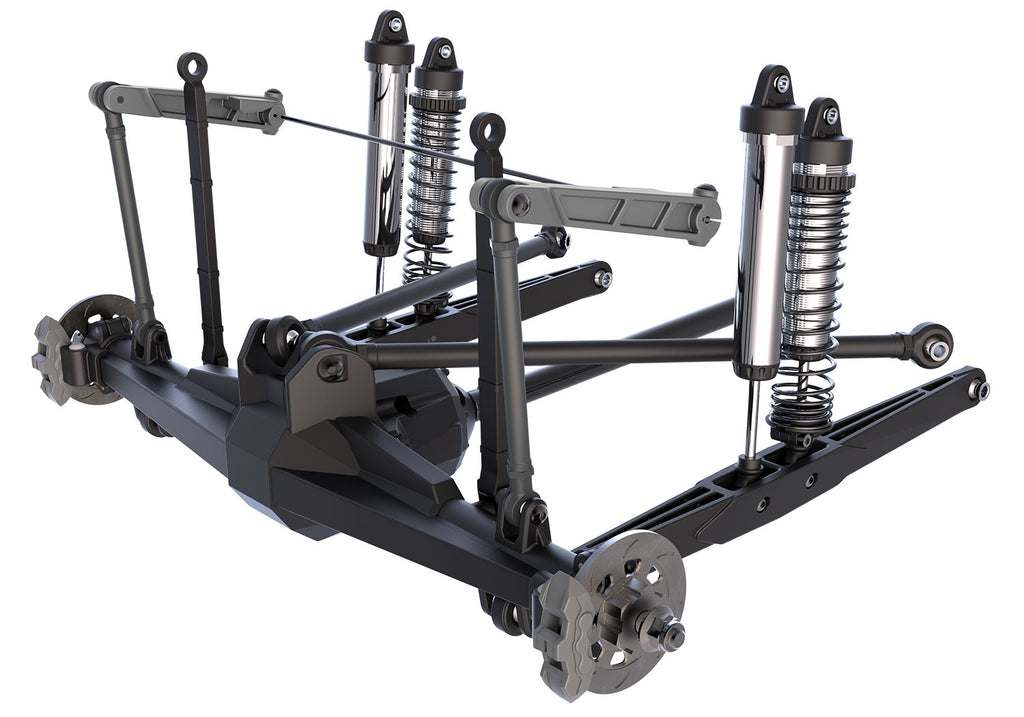

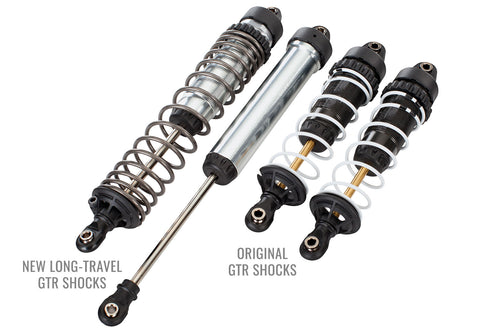

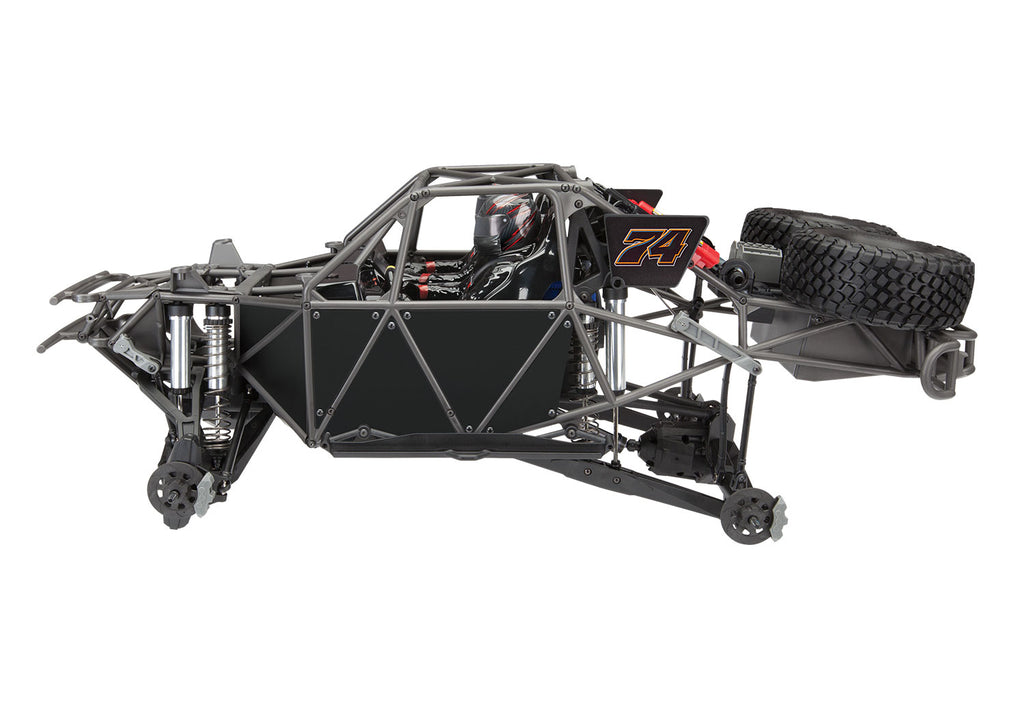

This is the Traxxas Unlimited Desert Racer "Fox" Style UDR 6S RTR 4WD Electric Race Truck, along with TQi 2.4GHz Radio & LED Lights is Race Truck is a true to scale 4-wheel drive desert race truck. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function. Attention to detail captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.
MODEL SPECS
| Model Name: |
Unlimited Desert Racer |
| Model Type: |
Desert race truck |
| Model Speed: |
30+ mph (with 4s LiPo), 50+ mph (with 6s LiPo) |
| Model Skill Level: |
5 |
| Scale: |
Pro-Scale®
|
| Weight: |
13.4 pounds (6.1 kg) |
| Length: |
27.32 inches (694 mm) |
| Width: |
13.57 inches (345 mm) |
| Front Track: |
13.57 inches (345 mm) |
| Rear Track: |
13.57 inches (345 mm) |
| Height: |
10.29 inches (261 mm) |
| Wheelbase: |
16.53 inches (420 mm) |
| Center Ground Clearance: |
2.27 inches (58 mm) |

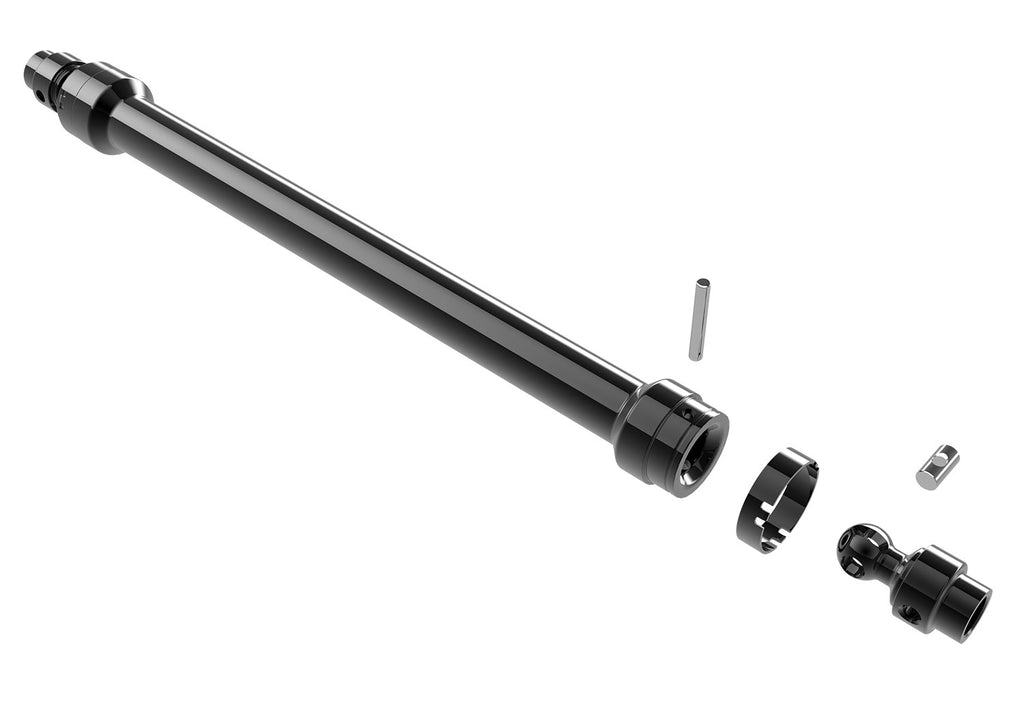

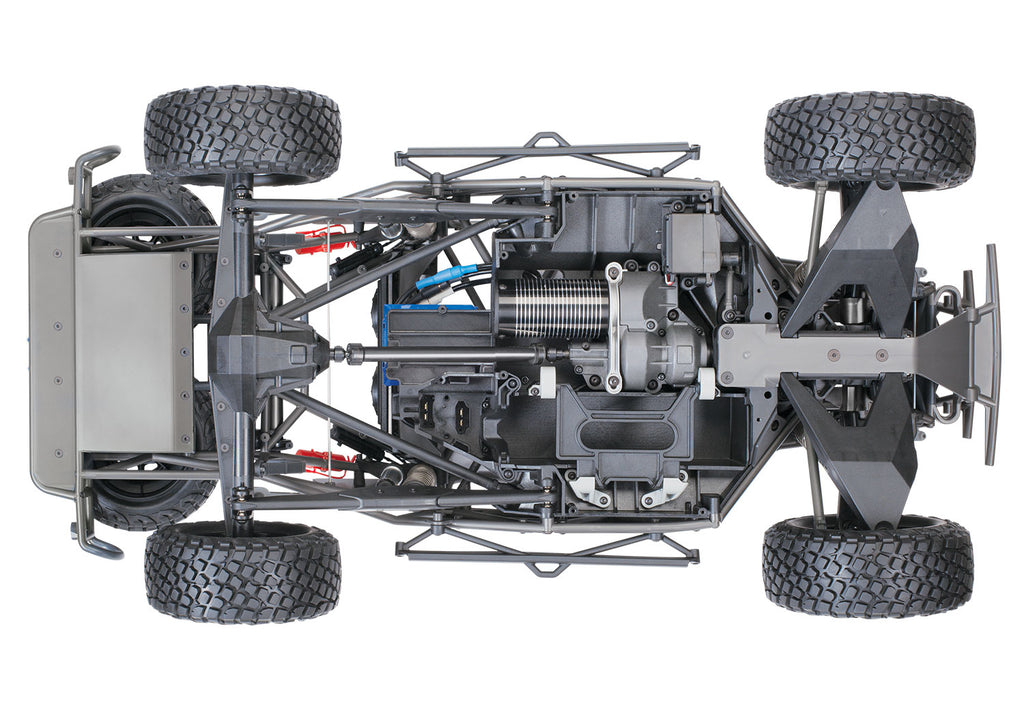

| Drivetrain: |
Shaft-driven 4WD |

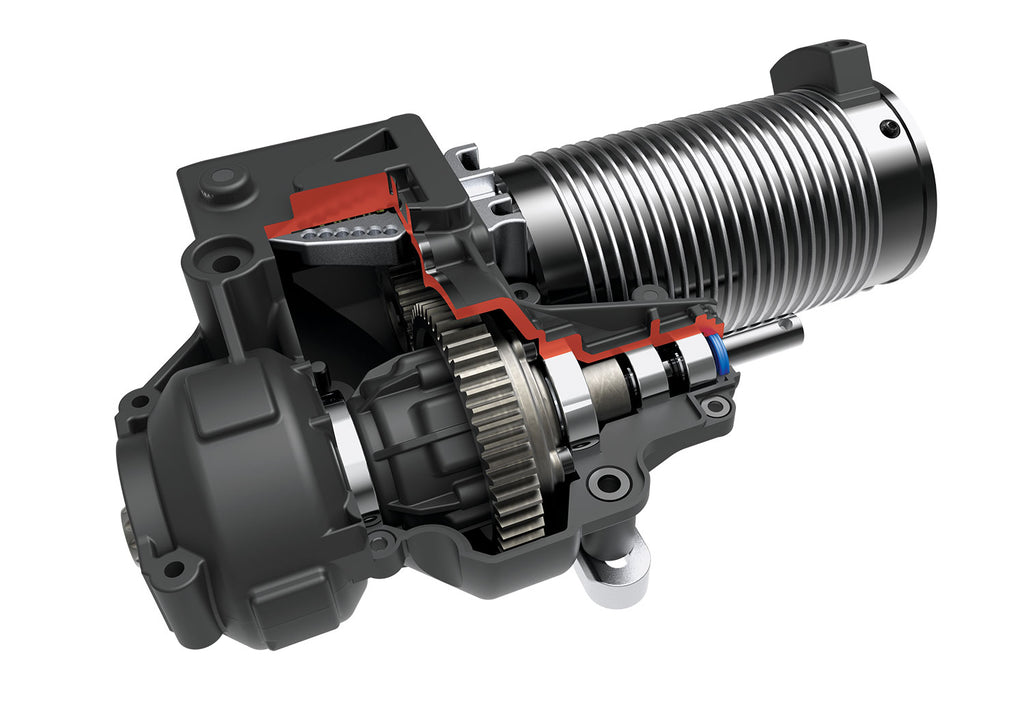

| Transmission: |
Direct-drive with Torque-Biasing Center Drive |
| Differential Type: |

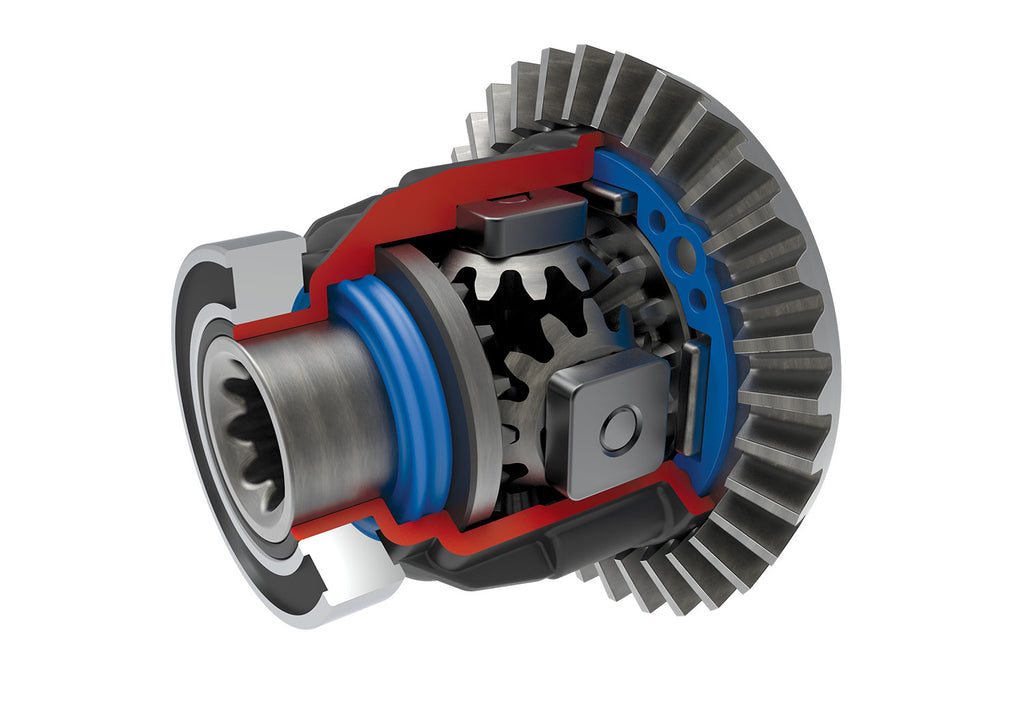

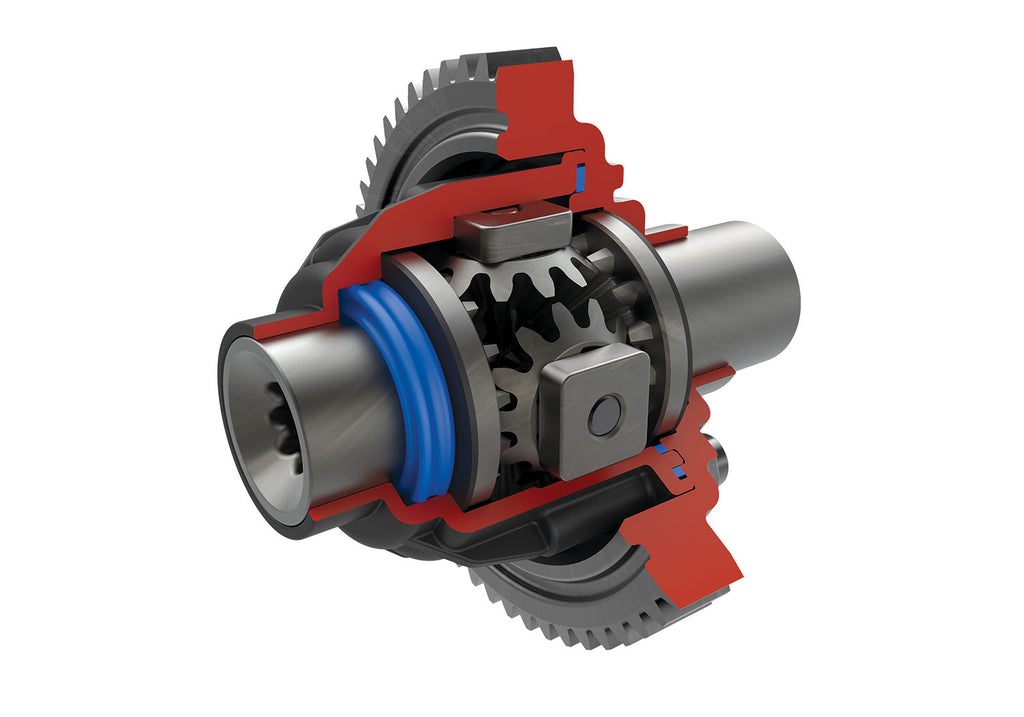

Sealed, 4-gear (front), locked spool (rear), Sealed, 4-gear (1M weight oil) (center) |
| Gear Ratio (Internal): |
17.89:1 |
| Gear Pitch: |
32 pitch |

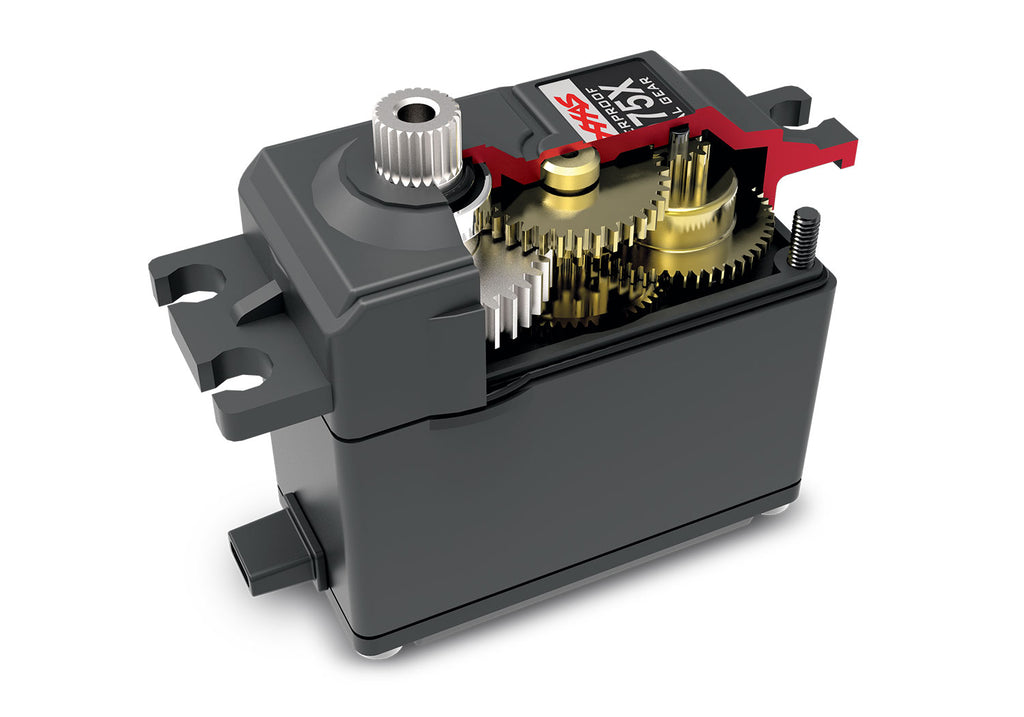

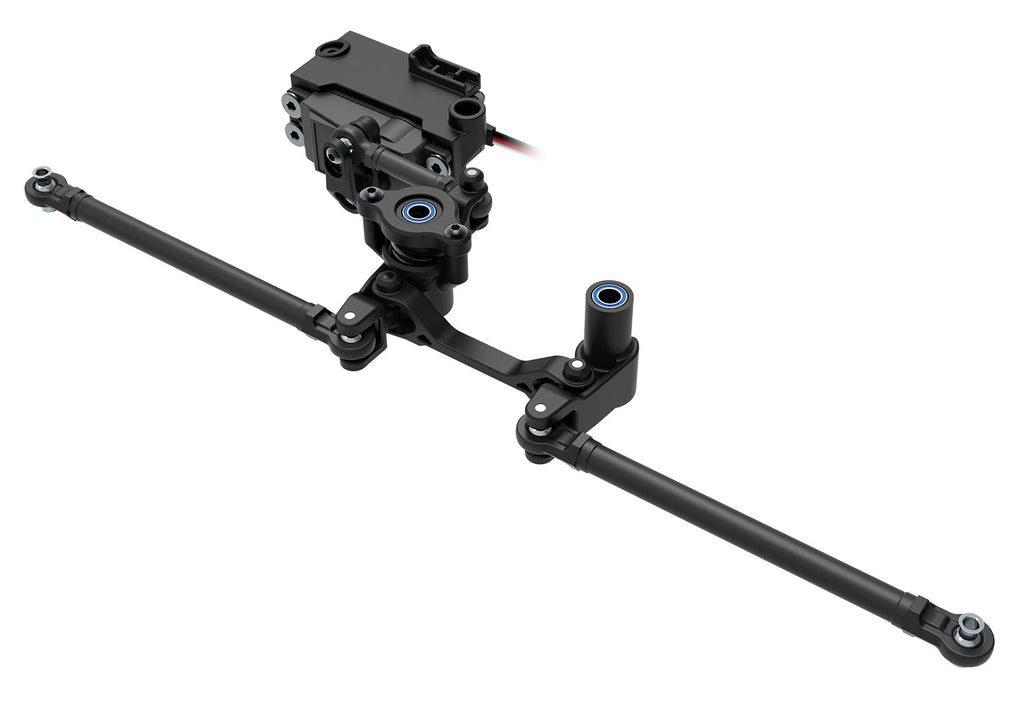

| Servo(s): |
2075R metal gear, digital high-torque waterproof |

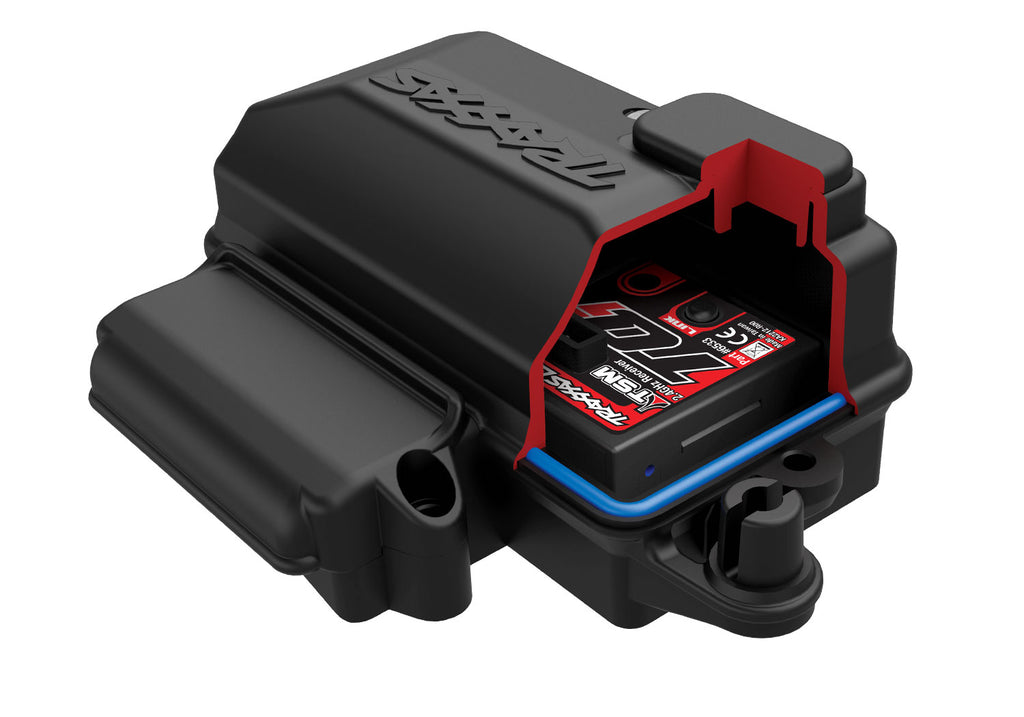

| Radio System: |
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
| Battery Compartment Specs: |
181 mm X 46 mm X 56 mm |

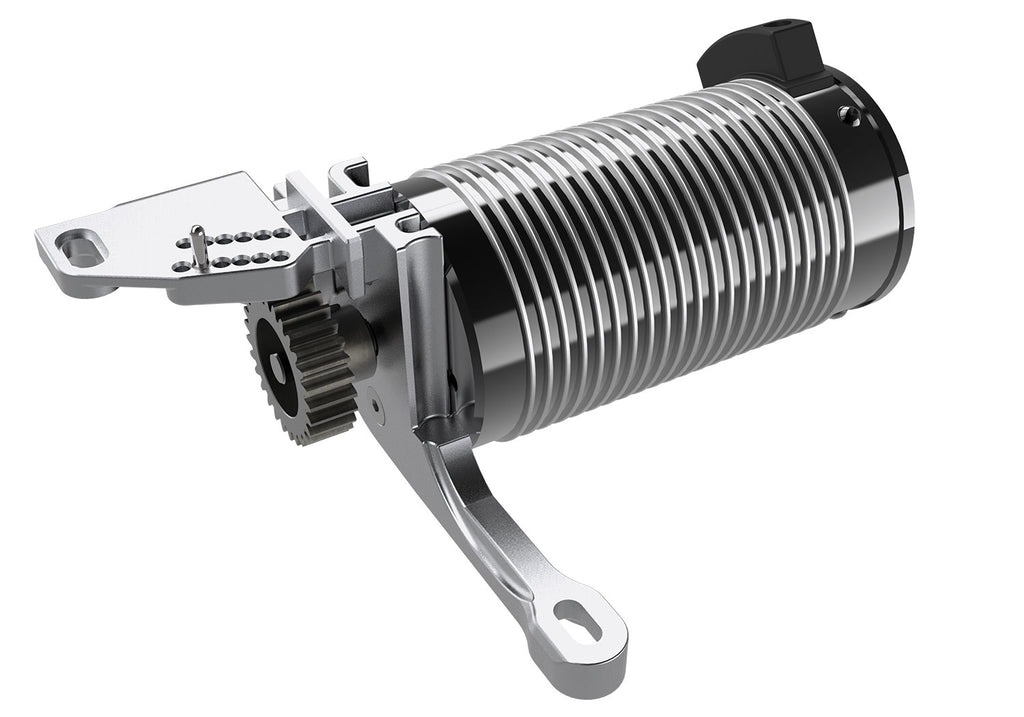

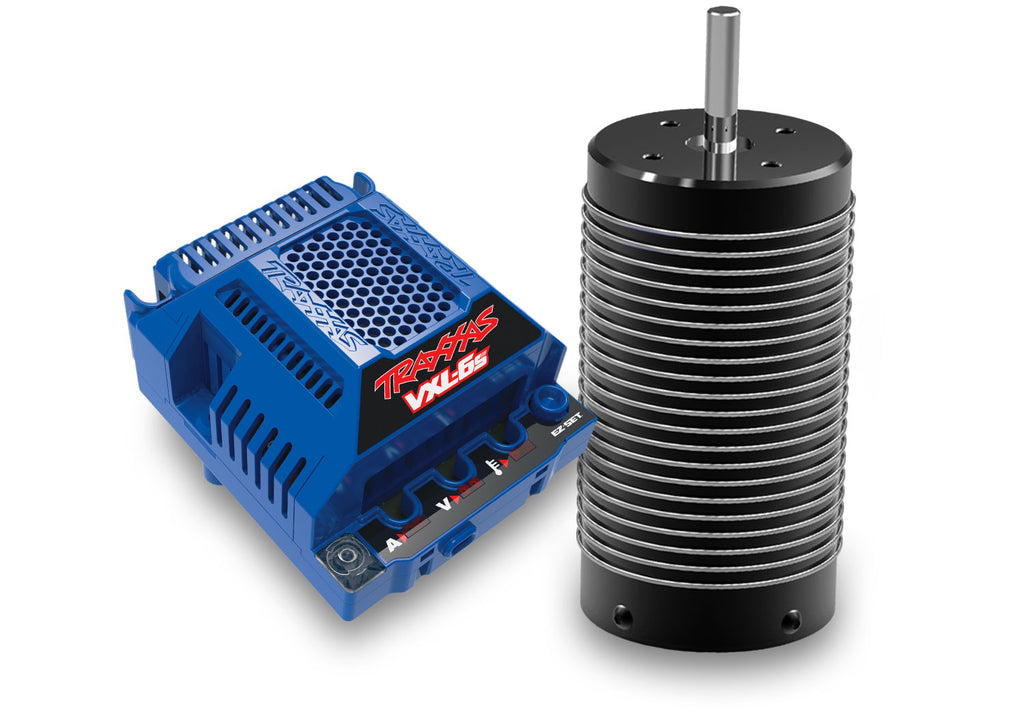

MOTOR SPECS
| Motor Name: |
2200 Kv |
| Motor Type: |
Sensorless brushless |
| Motor Weight: |
14.32 ounces (406 g) |
| Motor Length: |
2.97 inches (76 mm) |
| Motor Diameter: |
1.65 inches (42 mm) |
| Motor Shaft Size: |
5 mm |
| Motor Connector Type: |
6.5 mm bullet |
ESC SPECS
| ESC Name: |
Velineon® VXL-6s |
| ESC Type: |
Brushless |
| ESC Case Size: |
2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: |
7.30 ounces (207 g) |
| Motor Connectors: |
6.5 mm bullet |
| Battery Connectors: |
Traxxas High Current Connector |
Includes:
- Unlimited Desert Racer with VXL-6s ESC and 2200kV motor
- Quick Start Guide
- TQi™ 2.4GHz radio system
- High quality maintenance tools

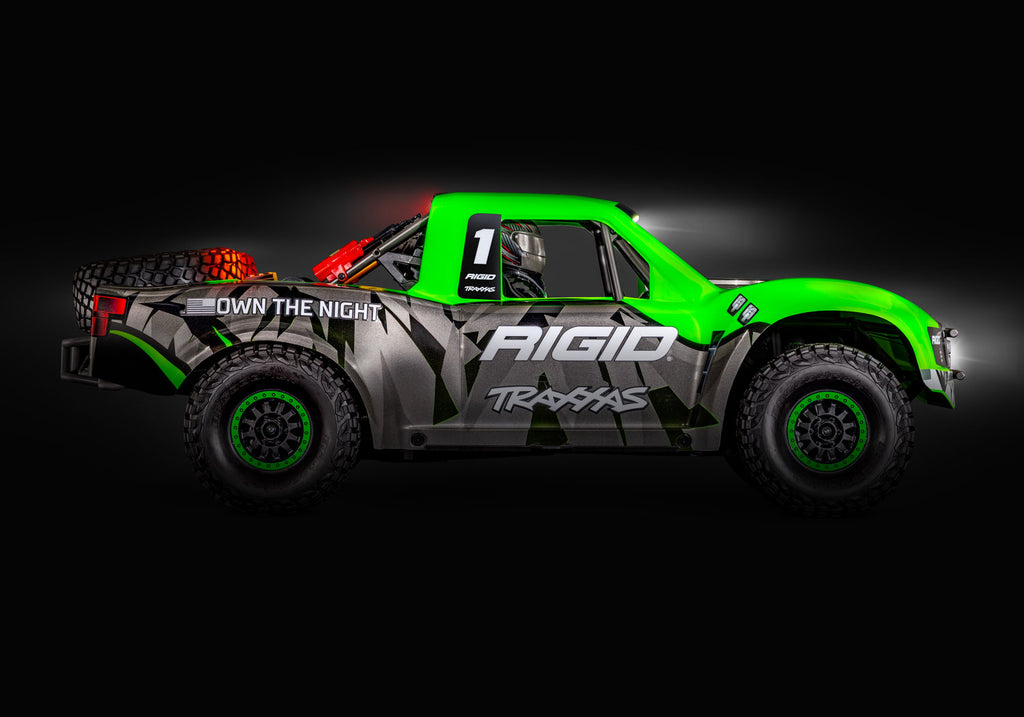

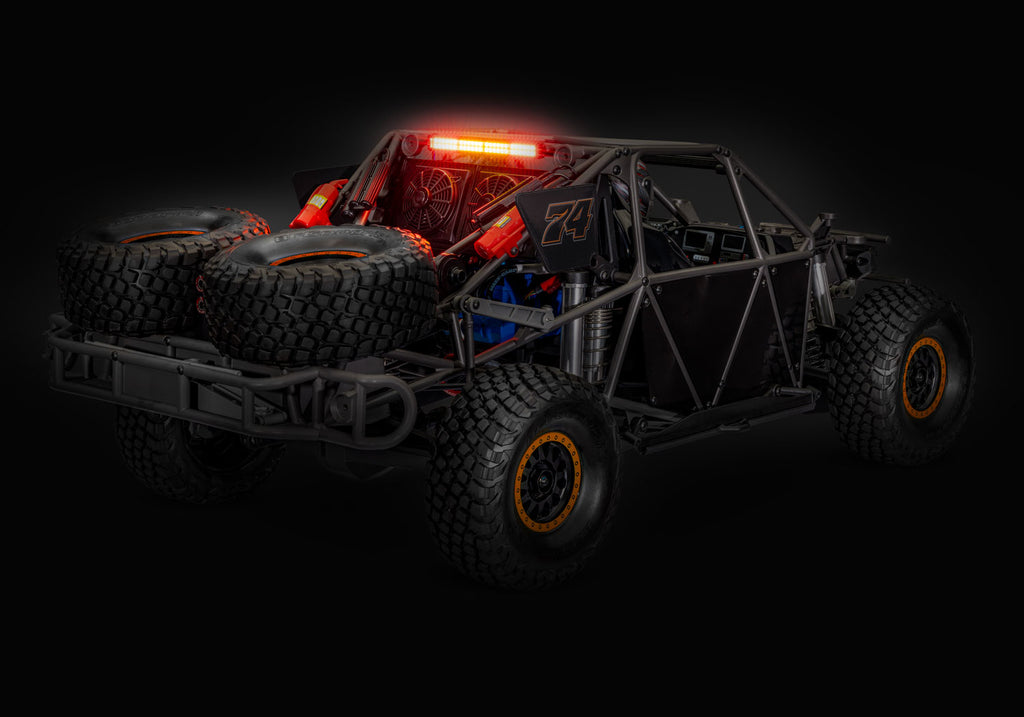

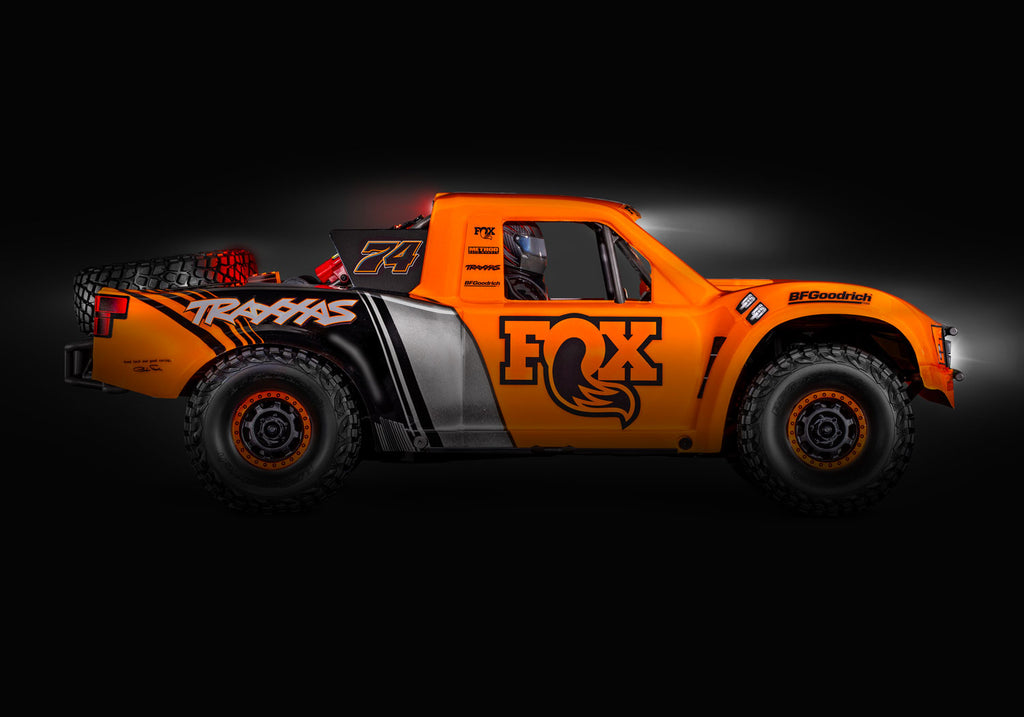

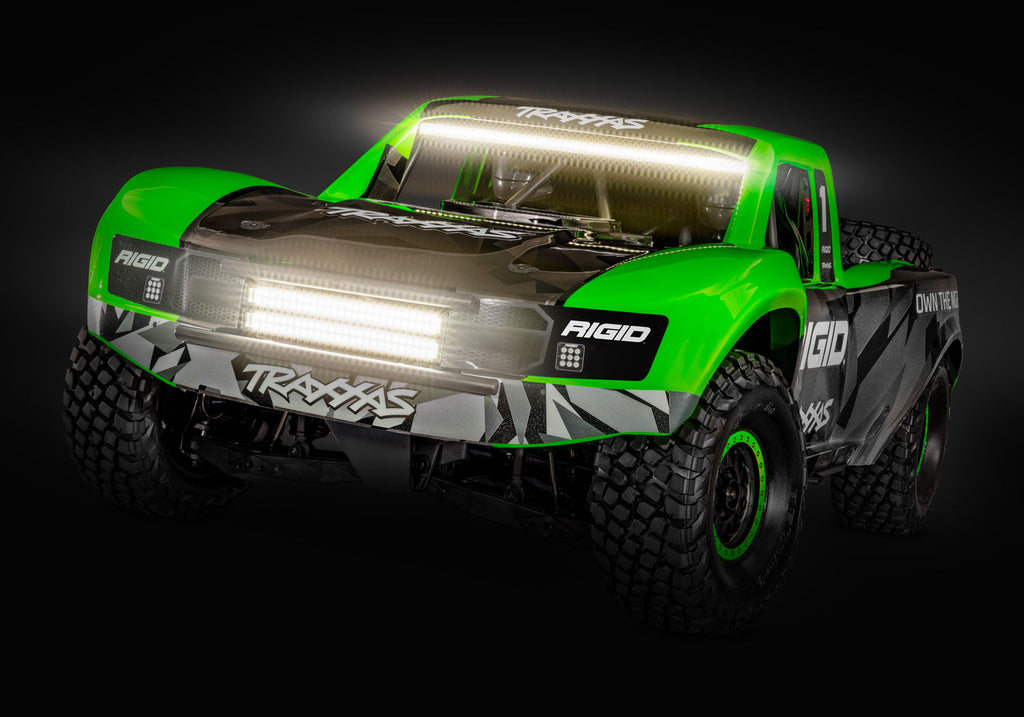

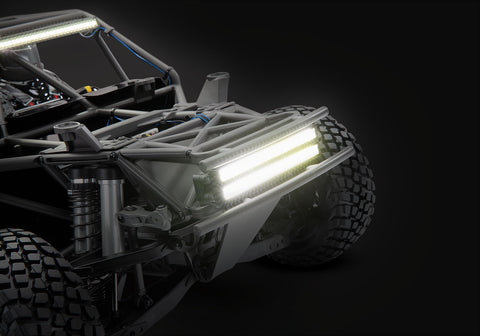

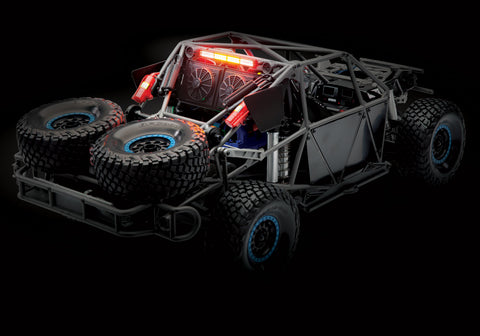

- LED Lighting System
- Product Manual
Needed To Complete:
- Single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries
- (1) Compatible Battery Charger
- (4) AA Batteries for Transmitter
Specifications:
| Scale |
1:7 |
| Drive |
4WD |
| Power Source |
Electric |
| Length |
27.32in (694mm) |
| Wheelbase |
16.53in (420mm) |
| Width |
13.57in (345mm) |
| Height |
10.29in (261mm) |
| Weight |
13.4lb (6.1kg) |
| Assembly Level |
RTR* |
